PKTRecognitionController Class Reference

The Pikkart Augmented Reality View Controller. More...

#import <PKTRecognitionController.h>

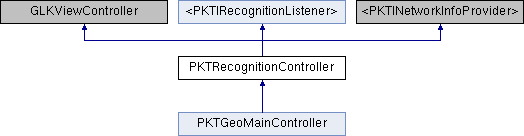

Inheritance diagram for PKTRecognitionController:

Instance Methods
(void)	- StartRecognition:andRecognitionCallback:
	Start Recognition Session. More...
(void)	- StopRecognitionWithoutCameraReset
	Stop Recognition Session without AVCaptureSession reset. More...
(void)	- StopRecognition
	Stop Recognition Session. More...
(void)	- CloseWithSessionReset:
	Stop Recognition Session with AVCaptureSession reset. More...
(void)	- ChangeRecognitionOptions:
	Change recognition options on current session. More...
(bool)	- isActive
	Check if recognition session is running. More...
(bool)	- isTracking
	Check if recognition session has been tracked a marker. More...
(PKTMarker *)	- getCurrentMarker
	Get Current Tracking Marker. More...
(void)	- getCurrentProjectionMatrix:
	Get Current Projection Matrix. More...
(void)	- getCurrentModelViewMatrix:
	Get Current Model View Matrix. More...
(bool)	- enableTorch
	Enable Torch on device, if available. More...
(bool)	- disableTorch
	Disable Torch on device, if available. More...
(void)	- RenderCameraWithViewPortSize:andAngle:
	Render Camera configuration. More...
(void)	- setFocusMode:
	Set focus mode on Capture Device. More...
(PKTRecognitionFocusMode)	- getFocusMode
	Get focus mode on Capture Device. More...
(void)	- setMarkerCacheSize:
	Set marker Cache Size. More...
(void)	- DisableRecognition
	Disable the recognition system.
(void)	- EnableRecognition
	Enables the recognition system.
(bool)	- IsRecognitionEnabled
	Is the recognition system enabled.
(void)	- EnableRecognitionEffect
	enable the orange dots recognition effect
(void)	- DisableRecognitionEffect
	disable the orange dots recognition effect

Detailed Description

The Pikkart Augmented Reality View Controller.

The Pikkart Augmented Reality View Controller. It allows photo camera access and recognition phase

Method Documentation

ChangeRecognitionOptions:()

- (void) ChangeRecognitionOptions:

(PKTRecognitionOptions *)

options

Change recognition options on current session.

Parameters

options

PKTRecognitionOptions parameter

CloseWithSessionReset:()

- (void) CloseWithSessionReset:

(PKTRecognitionControllerCompletionHandler)

completionHandler

Stop Recognition Session with AVCaptureSession reset.

Parameters

completionHandler

completion handler called after session is stopped and resetted

disableTorch()

- (bool) disableTorch

Disable Torch on device, if available.

Returns

bool torch state

enableTorch()

- (bool) enableTorch

Enable Torch on device, if available.

Returns

bool torch state

getCurrentMarker()

- (PKTMarker *) getCurrentMarker

Get Current Tracking Marker.

Returns

PKTMarker current tracking marker

getCurrentModelViewMatrix:()

- (void) getCurrentModelViewMatrix:

(float **)

matrixPointer

Get Current Model View Matrix.

Parameters

matrixPointer

Current model view matrix

getCurrentProjectionMatrix:()

- (void) getCurrentProjectionMatrix:

(float **)

matrixPointer

Get Current Projection Matrix.

Parameters

matrixPointer

Current projection matrix

getFocusMode()

- (PKTRecognitionFocusMode) getFocusMode

Get focus mode on Capture Device.

Returns

AVCaptureFocusMode focus mode

isActive()

- (bool) isActive

Check if recognition session is running.

Returns

bool recognition running

isTracking()

- (bool) isTracking

Check if recognition session has been tracked a marker.

Returns

bool recognition is tracking

RenderCameraWithViewPortSize:andAngle:()

- (void) RenderCameraWithViewPortSize:		(CGSize)	viewPortSize
andAngle:		(int)	angle

Render Camera configuration.

Parameters

viewPortSize	View Port Size
angle	angolo della fotocamera

setFocusMode:()

- (void) setFocusMode:

(PKTRecognitionFocusMode)

focusMode

Set focus mode on Capture Device.

Parameters

focusMode

focus mode

setMarkerCacheSize:()

- (void) setMarkerCacheSize:

(int)

markerCacheSize

Set marker Cache Size.

Parameters

markerCacheSize

marker Cache Size

StartRecognition:andRecognitionCallback:()

- (void) StartRecognition:		(PKTRecognitionOptions *)	recognitionOptions
andRecognitionCallback:		(id< PKTIRecognitionListener >)	recognitionCallback

Start Recognition Session.

Parameters

recognitionOptions	PKTRecognitionOptions parameter
recognitionCallback	instance conforms to PKTIRecognitionListener protocol

StopRecognition()

- (void) StopRecognition

Stop Recognition Session.

StopRecognitionWithoutCameraReset()

- (void) StopRecognitionWithoutCameraReset

Stop Recognition Session without AVCaptureSession reset.
